Different Routes on the Electrical Highway

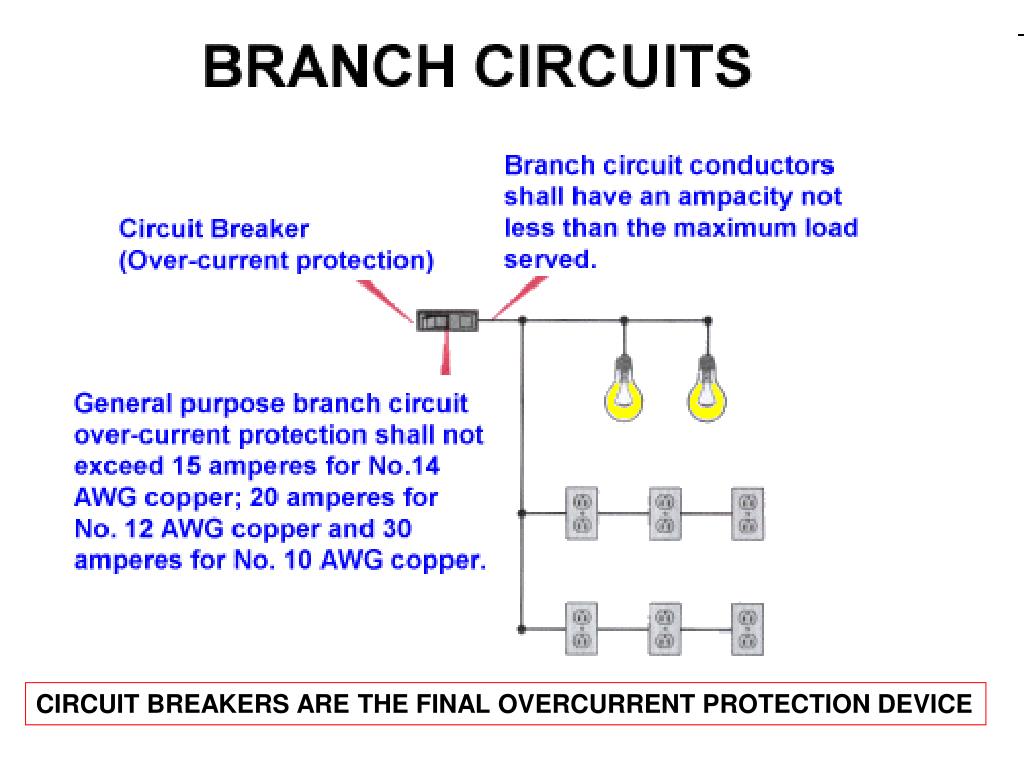

2. The General-Purpose Circuit
The general-purpose circuit is the workhorse of your home's electrical system. These circuits power most of your standard outlets, lights, and small appliances. You'll find them scattered throughout your living rooms, bedrooms, and hallways. They're usually rated for 15 or 20 amps, and are ideal for items like lamps, TVs, and phone chargers. Just don't try running a whole server farm on one, okay?
It's essential to avoid overloading these circuits. Plugging too many high-power devices into a single general-purpose circuit can cause the breaker to trip, cutting off power to that area. A good rule of thumb is to distribute your electrical load evenly across different circuits. Think of it like spreading out the weight in a canoe — too much on one side, and you're going for a swim!
Remember that those extension cords snaking across the floor? While convenient, they can be a sign that you need more outlets or dedicated circuits. Over-relying on extension cords increases the risk of overloading a circuit and creates a potential tripping hazard. Adding more outlets is a safer, long-term solution.
So, next time you're considering plugging in that extra space heater, take a peek at the circuit breaker panel to see which circuit you're using. A little planning can prevent a lot of frustration (and potential electrical issues!).
3. The Appliance Circuit
Appliance circuits, as the name suggests, are specifically designed for high-power appliances like refrigerators, washing machines, dryers, and electric ovens. These circuits are typically rated for 20, 30, or even 50 amps, depending on the appliance's power requirements. They provide a dedicated power supply, ensuring that these energy-hungry devices operate safely and efficiently.
These circuits are crucial because appliances often require a significant amount of electricity to operate properly. Sharing an appliance circuit with other devices can overload the circuit and cause the appliance to malfunction or even pose a fire hazard. Think of it like giving a marathon runner their own lane — they need the space to perform at their best.
A key difference between appliance circuits and general-purpose circuits is the type of receptacle (outlet) they use. Appliance circuits often use a special receptacle that matches the appliance's plug configuration. This prevents you from accidentally plugging a high-power appliance into a general-purpose circuit, which could lead to problems.
When installing a new appliance, always consult the manufacturer's instructions to determine the correct circuit and receptacle requirements. Hiring a qualified electrician to install the circuit is always a good idea, as it ensures the job is done safely and according to code.
4. The Individual Circuit
Individual circuits are the VIPs of the electrical world, each serving only one specific appliance or piece of equipment. Common examples include circuits for air conditioners, electric water heaters, and sometimes even a fancy jacuzzi tub. These circuits are designed to handle the unique power demands of these devices, providing a stable and reliable power supply.
The beauty of an individual circuit is that it eliminates the risk of overloading the circuit with other devices. This is especially important for appliances that draw a large amount of power or have sensitive electronic components. It's like having a private highway for a very important delivery — guaranteed to arrive on time and without any traffic jams.
Similar to appliance circuits, individual circuits often use a specific type of receptacle that matches the appliance's plug. This ensures that the appliance is connected to the correct voltage and amperage, preventing damage and ensuring safe operation. Think of it like a puzzle piece that only fits in one place.
If you're planning to install a new appliance that requires a dedicated circuit, it's essential to consult with a qualified electrician. They can assess your home's electrical system and determine the appropriate circuit size and wiring requirements. Safety first, always!
